Studio Design, Build and Installation

• Title: TechWiseTV Studio, Cisco Campus, San Jose CA
• TRT: 8 Month Process
• Role: Project Manager, Designer and Lead Install Engineer
• Basic Description:

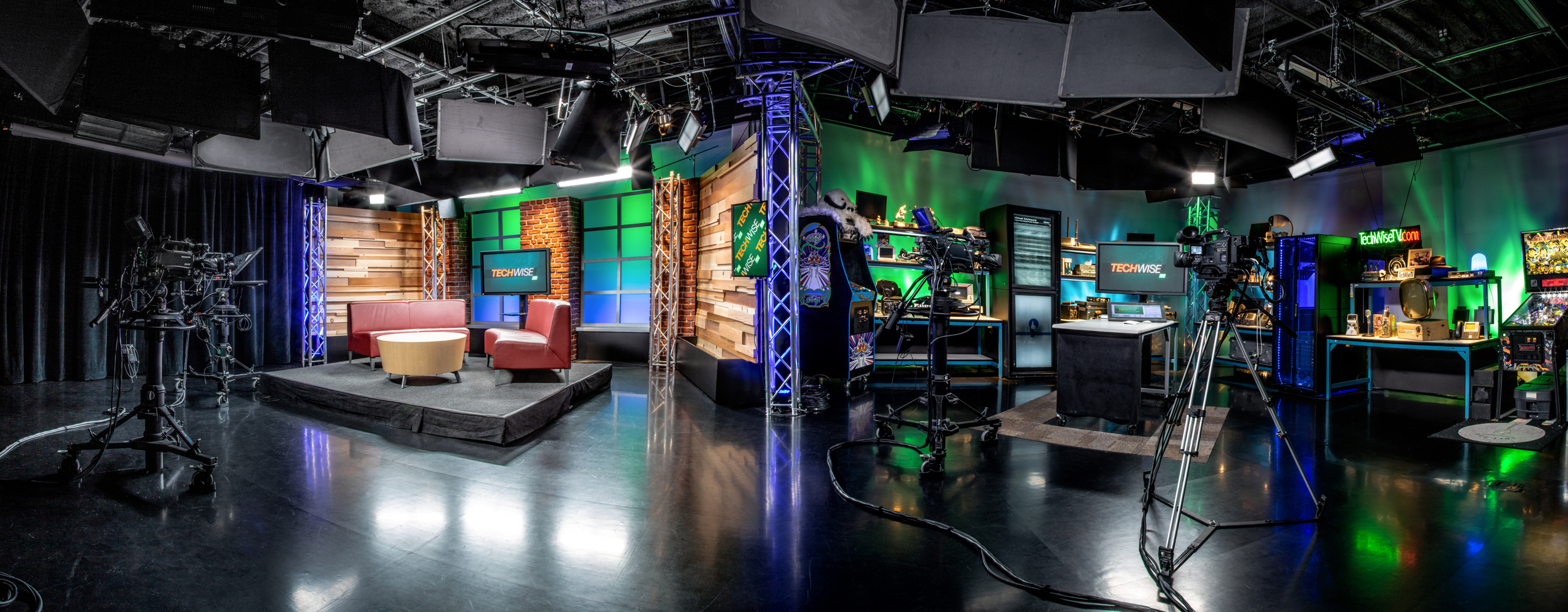

Main Stage -

• 4 Panasonic P2  Camera and 1 Panasonic PTZ camera
• One camera has a full Teleprompter System with program monitor
• 8 wireless Clear-Com  belt packs and head sets
• Full lighting & grip - Kino Flows and LED light on full dimmer system
• 3 independent on set monitors via HD SDI from control room
• Mac Mini with Wacom drawing monitor - DVI input to scan converter
• 1 additional DVI input, and 2 VGA inputs feed 2  scan converters
• 2 standing sets for TechWise TV ( talk area has reversible wall  along with LED lighting changes to create another look for an internal show.

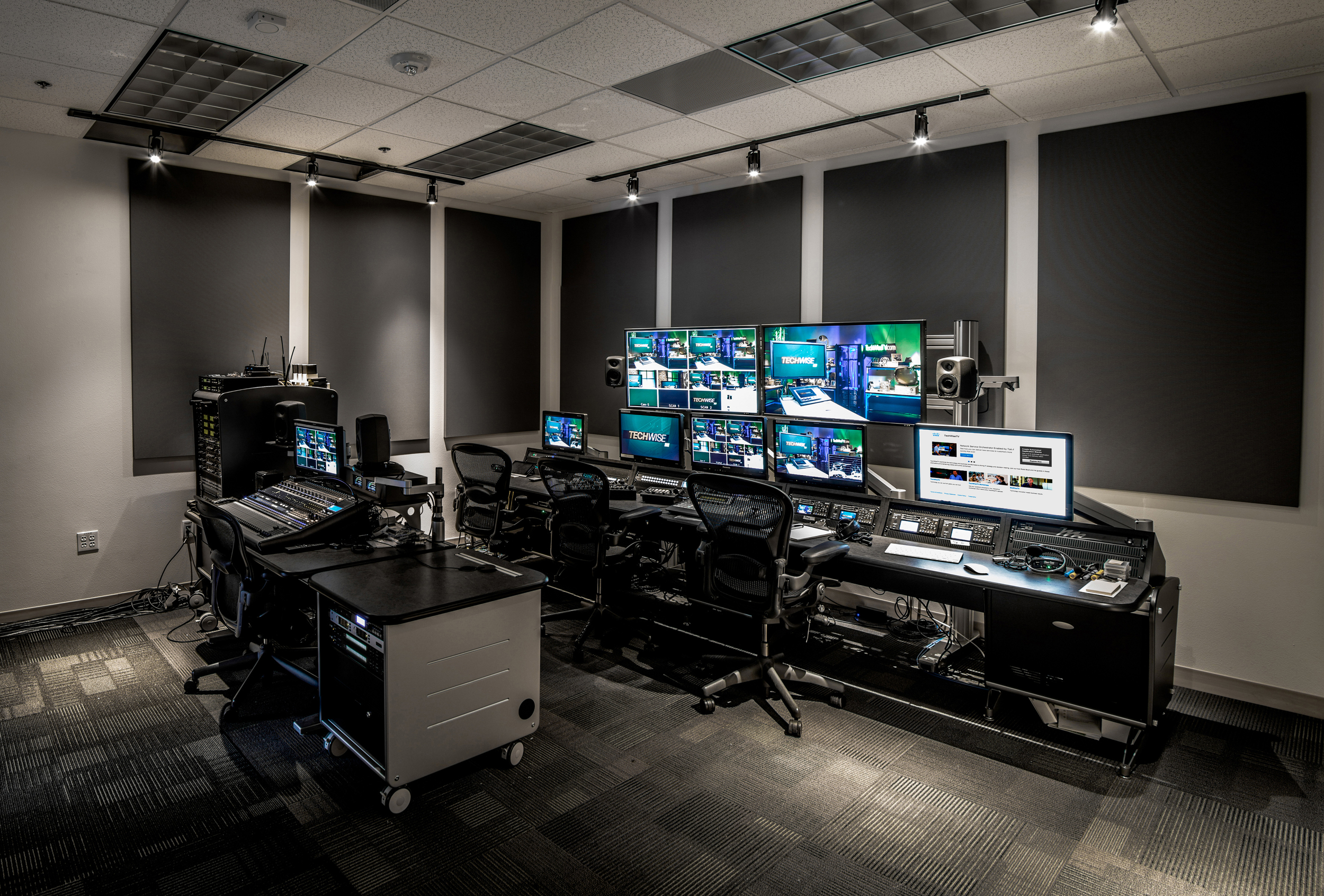

Control Room - Video

• Control Room built on a Black Magic HD SDI Router
• 4 Panasonic P2 recording Decks
• 2 Folsom Scan Converters for on set computers 9 - DVI & VGA
• 1 Image Pro 2 - Bringing Cisco Telepresence to studio
• Mac Mini & Folsom for teleprompter / slide prompting
• Panasonic Production Switcher
• 4 Panasonic Studio Production Monitors with Scopes
• 2 42 inch LCD screens for room viewing
• 2 Channel ClearCom Base system, with wired belt packs and head sets

Control Room  - Audio

• 4 wireless mic LAV/E6  and wireless hand  held mics
• 2 wireless IFB units
• Schoeps Boom mic and pole
• Digital Audio Mixing board
• Multi DA units feeding all cameras and decks
• Near field and control confidence speakers
• MP3 audio recorded
• Stage announce speaker system  with Telepresence & Clear -Com tie in

Edit Suites A & B

• 2 edit rooms running Adobe Premier Pro CC 2015 &  Red Giant plug ins
• Each edit system uses a bare drive back up system, to 1 TB drives
• Edit A - based on a MacPro ( trash can ) 64 GB RAM, 1TB internal drive, two 27inch  thunderbolt displays and a 4 TB Thunderbolt G-Technology Hard Drive. Input via a 3 slot P2 Panasonic Card Reader and 4 Slot CF Card Reader
• Edit B - based on a new 27-inch iMac with 5K Retinal Display. 32GB RAM, 3TB Fusion Drive and a 4 TB Thunderbolt G-Technology Hard Drive. Input via a 3 slot P2 Panasonic Card Reader
